| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09032967825 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 96 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 50 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09032967825 |
09032967825
Specifications
Detailed Description

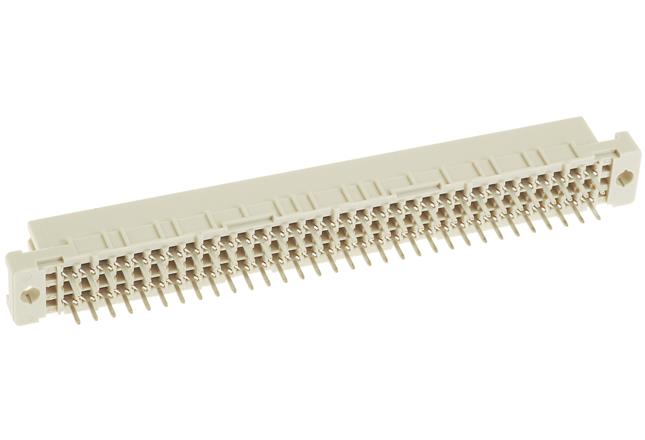

Introducing the DIN 41612 Type C Connector, a crucial component for seamless motherboard to daughtercard and mezzanine connectivity. This female connector, crafted from durable thermoplastic resin with glass-fibre filling, ensures reliable performance in demanding environments. With a sleek Pebble Gray finish and a total of 96 contacts spread across 3 rows, it offers ample connectivity options. The solder termination method, coupled with copper alloy contacts plated with Tin over Nickel and Noble Metal, guarantees secure and stable connections. Operating efficiently in temperatures ranging from -55°C to 125°C, this connector is suitable for a wide range of applications. It boasts a 2A current rating, 1kV voltage rating, and complies with RoHS standards for environmental responsibility. Trust in the DIN 41612 Type C Connector for high-quality board-to-board PCB connectivity solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
