| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09032967850 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 96 |
| Number of Rows: | 3 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 50 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09032967850 |
09032967850
Specifications
Detailed Description

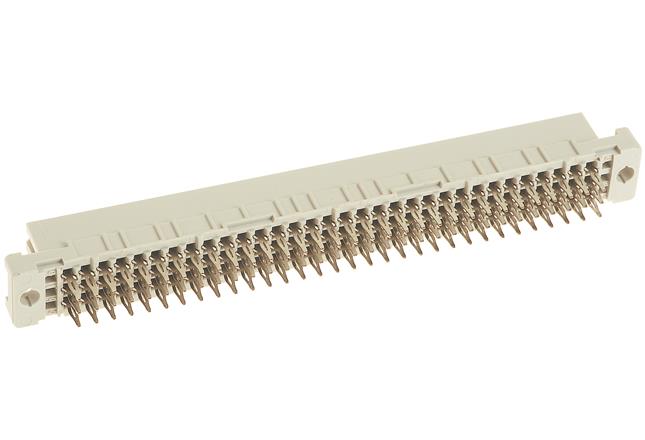

Introducing the 09032967850 DIN 41612 Type C Connector, a crucial component for seamless motherboard to daughtercard connectivity in your electronic systems. This female connector, made from durable thermoplastic resin with glass-fibre filling, ensures reliable performance even in demanding environments. Featuring press-in termination for easy installation, it boasts 96 contacts in 3 rows, facilitating efficient data transfer. With a wide operating temperature range of -40 to 105 °C and a voltage rating of 1 kV, this connector guarantees robust functionality. Its sleek Pebble Gray housing, UL 94V-0 flammability rating, and RoHS compliance underscore its quality and safety. Perfect for board-to-board PCB connections, mezzanine setups, and more, the 09032967850 is a must-have for any electronic project.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
