| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09033782901 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 80 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Electroless Nickel Phosphorus Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm, 7.62 mm |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09033782901 |
09033782901
Specifications
Detailed Description

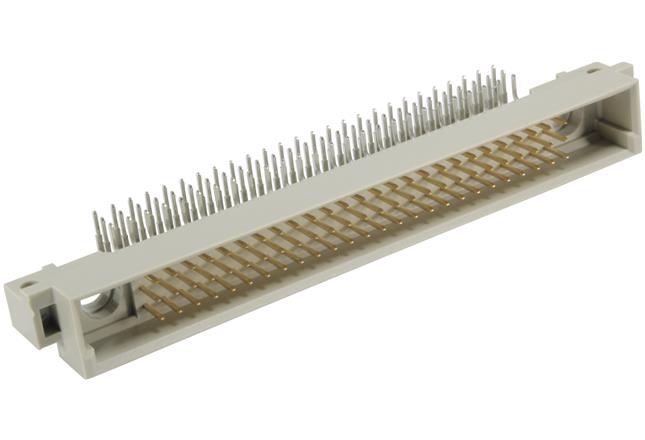

Introducing the DIN 41612 Type M Connector, designed for reliable board-to-board PCB connections in industrial applications. This male connector features a housing made of durable glass-filled plastic in Pebble Gray, ensuring long-lasting performance even in harsh environments. With 80 contacts arranged in 3 rows and a pitch of 2.54mm, it provides ample connectivity for your systems. The termination method is solder, guaranteeing secure attachment. Contacts are made of copper alloy with various platings for optimal conductivity. Operating temperature ranges from -55°C to 125°C, meeting the demands of demanding operating conditions. With a current rating of 2A and voltage rating of 1kV, this connector offers high performance and reliability. UL 94V-0 flammability rating ensures safety compliance. Trust the DIN 41612 Type M Connector for seamless and efficient PCB connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
