| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09033966918 |
| Color: | Beige |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 96 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Electroless Nickel Phosphorus Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Right Angle |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09033966918 |
09033966918
Specifications
Detailed Description

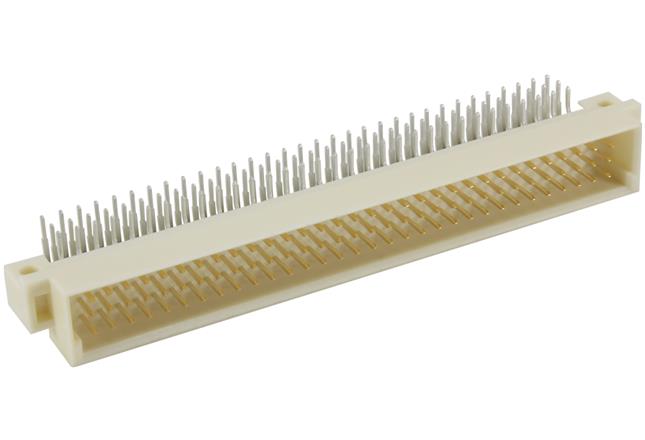

Introducing the DIN 41612 Type C Male Connector, a crucial component for seamless connectivity in electronic devices. This connector, made from durable thermoplastic resin with glass-fibre filling, ensures reliable performance even in demanding environments. With 96 contacts arranged in 3 rows and a pitch of 2.54mm, it facilitates high-speed data transmission on motherboards, daughtercards, extender cards, and PCBs. The right-angle mount design allows for easy installation in tight spaces. Solder termination method and copper alloy contacts with tin plating guarantee secure and stable connections, rated for up to 400 mating cycles. Operating temperatures ranging from -55°C to 125°C make it suitable for a wide range of applications. With a UL 94V-0 flammability rating, it meets strict safety standards. Trust in the DIN 41612 Type C Male Connector for efficient and durable board-to-board and PCB interconnect solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
