| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09034962824 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 96 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09034962824 |
09034962824
Specifications
Detailed Description

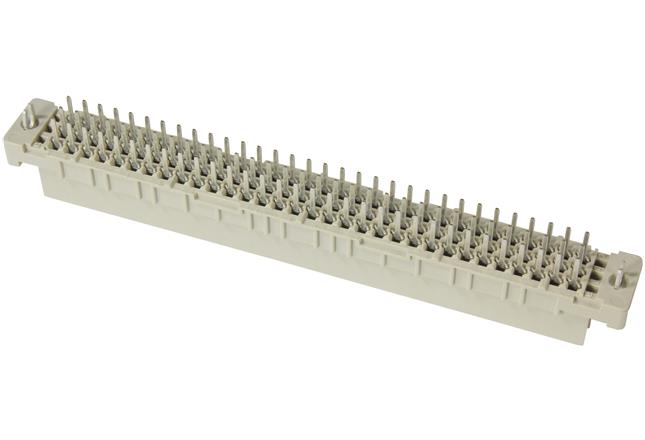

Introducing the 09034962824, a versatile DIN 41612 Type C Connector designed for seamless motherboard to daughtercard and mezzanine connections. This female connector boasts a durable construction of thermoplastic resin with glass-fibre filling, ensuring reliability in various applications. With a pebble gray color and featuring 96 contacts in 3 rows, it offers ample connectivity options. The termination method of soldering, along with copper alloy contacts plated with tin over nickel and noble metal, guarantees optimal signal transmission. Operating efficiently in temperatures ranging from -55°C to 125°C, this connector is suitable for diverse environments. Compliant with RoHS standards and with a voltage rating of 1 kV, it prioritizes safety and environmental responsibility. Perfect for board-to-board PCB connections, mezzanine, and stacking applications, the 09034962824 is a dependable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
