| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09034966825 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 96 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09034966825 |
09034966825
Specifications
Detailed Description

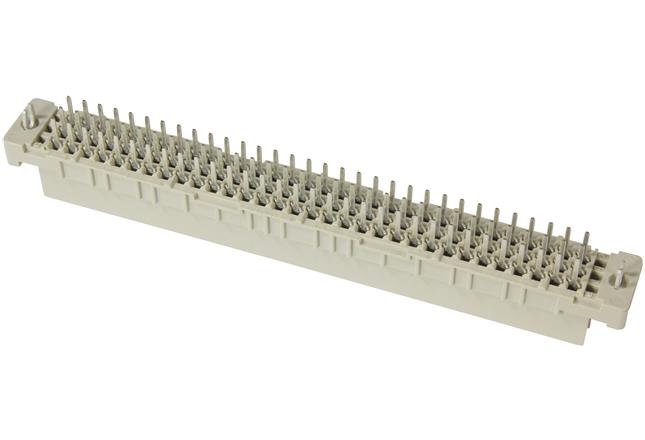

The 09034966825 is a DIN 41612 Type C female connector designed for reliable motherboard to daughtercard and mezzanine connections. With a housing made of glass-filled plastic and 96 contacts in 3 rows, this connector ensures durable performance. Featuring a straight mount angle and solder termination method, it offers easy installation. The copper alloy contacts with tin over nickel plating guarantee excellent conductivity, while meeting RoHS compliance standards. With a wide operating temperature range of -55°C to 125°C and a voltage rating of 1 kV, this connector is suitable for various applications. Its UL 94V-0 flammability rating ensures safety. With 400 mating cycles and a current rating of 2 A, it is a reliable choice for board to board PCB connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
