| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09042326826 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 32 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 5.08 mm |
| Mount Angle: | Right Angle |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1.55 kV |
| SKU: | HRT09042326826 |

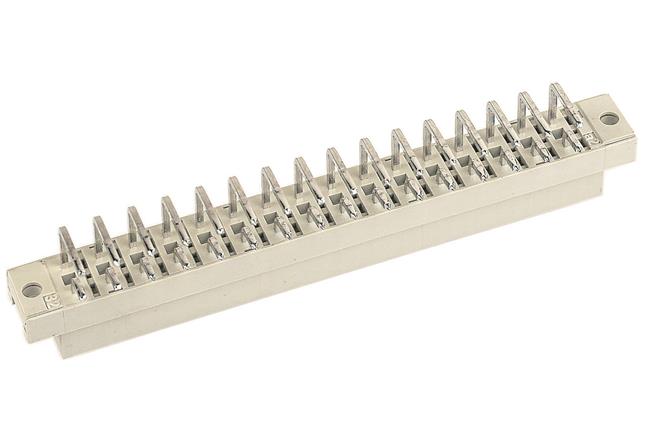

09042326826
Specifications
Detailed Description
Introducing the DIN 41612 Type D Connector, a female connector designed for seamless communication between motherboards, daughtercards, and extender cards. Made from durable thermoplastic resin with glass-fibre filling, this Pebble Gray connector ensures reliable performance in any environment. Featuring 32 contacts arranged in 2 rows with a 5.08mm pitch, it allows for efficient data transfer. The solder termination method and copper alloy contacts plated with tin over nickel guarantee secure connections. With a wide operating temperature range of -55°C to 125°C and a voltage rating of 1.55kV, this connector is suitable for various applications. RoHS compliant and UL 94V-0 certified for safety, it meets the highest quality standards. Upgrade your board-to-board and PCB connectivity with the DIN 41612 Type D Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
