09043326919

HRT09043326919
Heilind Number:HRT09043326919
Manufacturer:HARTING
Manufacturer Number:09043326919
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

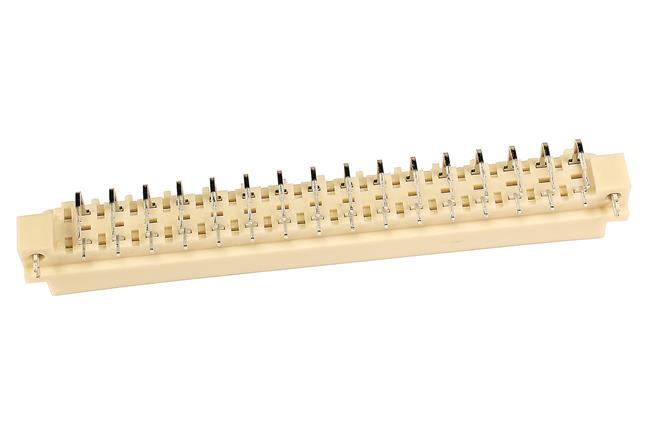

DIN 41612, Type D, Connector; Male connector; Thermoplastic resin, glass-fibre filled; Motherboard to daughtercard, Extender card, PCB to cable

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09043326919
Color:Beige
Series:DIN 41612
Gender:Male
Housing Material:Glass-Filled Plastic
Number of Contacts:32
Number of Rows:2
Termination Method:Solder
Contact Material:Copper Alloy
Contact Plating:Noble Metal Over Nickel, Tin Over Nickel
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Pitch:5.08 mm
Mount Angle:Right Angle
Mating Cycles:400 cycle
Flammability Rating:UL 94V-0
Current Rating:6 A
Voltage Rating:1.55 kV
SKU:HRT09043326919

Detailed Description

Introducing the 09043326919, a DIN 41612 Type D Connector designed for seamless connectivity in a variety of applications. This male connector features a durable construction with thermoplastic resin and glass-fibre fill, ensuring reliability in Motherboard to daughtercard, Extender card, and PCB to cable setups. Its beige color and right angle mount angle make for easy installation, while its 32 copper alloy contacts plated with tin over nickel guarantee optimal signal transmission. With a wide operating temperature range of -55°C to 125°C and a voltage rating of 1.55 kV, this connector is built to withstand harsh environments. RoHS compliant and boasting a UL 94V-0 flammability rating, it prioritizes safety and sustainability. Perfect for use in high-speed data transmission and power applications, the 09043326919 is a reliable choice for your connectivity needs.
