| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09057486831 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 48 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 5.08 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 6 A |
| Voltage Rating: | 1.55 kV |
| SKU: | HRT09057486831 |
09057486831
Specifications
Detailed Description

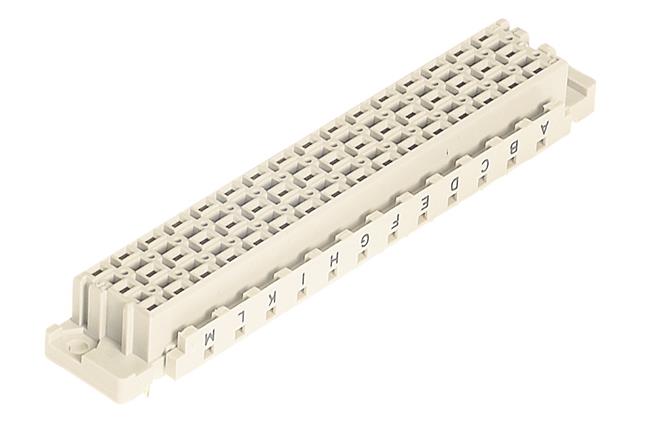

Introducing the DIN 41612 Type E Connector, a reliable solution for connecting motherboards to daughtercards and mezzanine boards. This female connector features a durable housing made of glass-filled plastic in a sleek Pebble Gray color. With 48 contacts spread across 3 rows and a pitch of 5.08mm, it offers secure and efficient connectivity. The termination method is solder, ensuring a strong and lasting bond. Contacts are made of copper alloy with tin over nickel and noble metal plating, guaranteeing excellent conductivity. Operating temperatures ranging from -55°C to 125°C make it suitable for various environments. With a current rating of 6A and voltage rating of 1.55kV, it meets high-performance requirements. RoHS compliant and UL 94V-0 rated for safety, this DIN connector is a top choice for board-to-board and PCB applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
