| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09060008472 |
| Series: | DIN 41612 |
| Gender: | Female |
| Termination Method: | Crimp |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Contact Resistance: | 20 mΩ |
| Mating Cycles: | 500 cycle |
| Wire Size: | 20 - 16 AWG |
| Contact Design: | Stamped |
| Current Rating: | 6 A |
| Stripping Length: | 3.5 - 4 mm |
| SKU: | HRT09060008472 |
09060008472
Specifications
Detailed Description

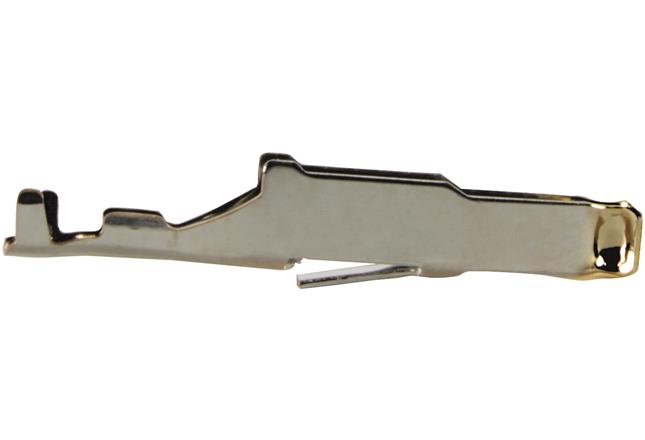

This crimp contact, SKU 09060008472, is designed for use in DIN 41612 connectors with a female gender. Made of durable copper alloy with nickel plating, it ensures reliable conductivity even in harsh environments, with a wide operating temperature range from -55°C to 125°C. The stamped contact design and crimp termination method make for easy installation with 20-16 AWG wires, while the 0.5 conductor cross-section and 6A current rating provide efficient power transfer. RoHS compliant and boasting a mating cycle of 500, this contact offers high reliability for a variety of applications in the aerospace, defense, and industrial sectors.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
