| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09060008474 |
| Series: | DIN 41612 |
| Gender: | Female |
| Termination Method: | Crimp |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Contact Resistance: | 20 mΩ |
| Mating Cycles: | 500 cycle |
| Wire Size: | 28 - 24 AWG |
| Contact Design: | Stamped |
| Current Rating: | 6 A |
| Stripping Length: | 3.5 - 4 mm |
| SKU: | HRT09060008474 |
09060008474
Specifications
Detailed Description

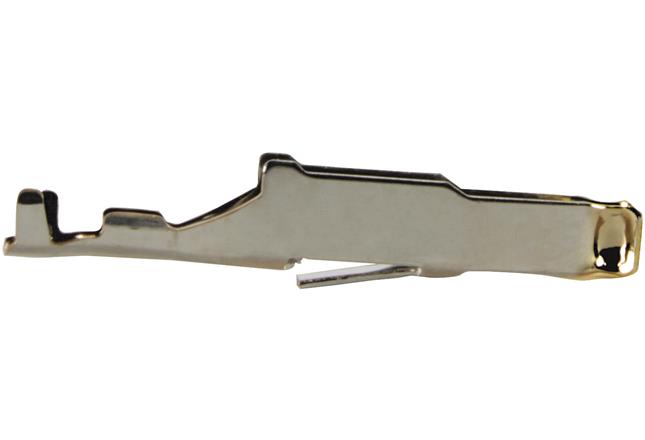

Introducing the 09060008474 Crimp Contact, designed for reliable connectivity in DIN 41612 applications. Constructed with a durable copper alloy, this female contact ensures secure termination through crimping, accommodating wire sizes ranging from 28 to 24 AWG. With a conductor cross-section of 0.09, it offers efficient signal transmission with a current rating of 6 A. The contact is plated with nickel and a noble metal overlay, enhancing conductivity while providing corrosion resistance. Operating in temperatures ranging from -55 to 125 °C, it guarantees performance in diverse environments. Engineered for longevity, this stamped contact boasts a contact resistance of 20 mΩ and is rated for 500 mating cycles. Ideal for use in high-reliability applications, it meets stringent quality standards, making it a dependable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
