| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09060152813 |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 15 |
| Termination Method: | Cage Clamp |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 5.08 mm |
| Mating Cycles: | 500 cycle |
| Performance Level: | Class I |
| Current Rating: | 15 A |
| Voltage Rating: | 3.1 kV |
| SKU: | HRT09060152813 |
09060152813
Specifications
Detailed Description

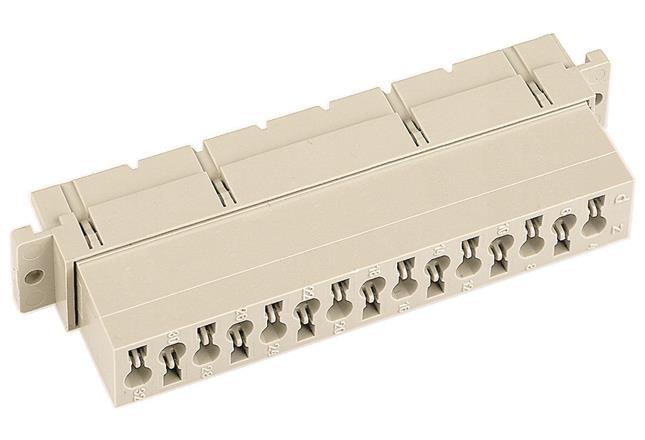

Introducing the DIN 41612 Type H15 Female Connector, a high-performance solution for your connectivity needs. This connector features a durable thermoplastic resin housing, reinforced with glass fibers for added strength. With a cage-clamp termination method, it ensures secure and reliable connections for PCB to cable or cable to cable applications. The 15 silver-plated contacts offer excellent conductivity, with a current rating of 15 A and voltage rating of 3.1 kV. Operating in a wide temperature range from -55°C to 125°C, this connector is suitable for diverse environments. With RoHS compliance and a performance level of Class I, you can trust in its quality and reliability. Perfect for use in backplane and PCB applications, this DIN connector ( 09060152813) is a must-have component for your projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
