| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09061162511 |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 16 |
| Termination Method: | Solder |
| Contact Plating: | Silver, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 10.16 mm |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Performance Level: | Class I |
| Current Rating: | 15 A |
| Voltage Rating: | 3.1 kV |
| SKU: | HRT09061162511 |
09061162511
Specifications
Detailed Description

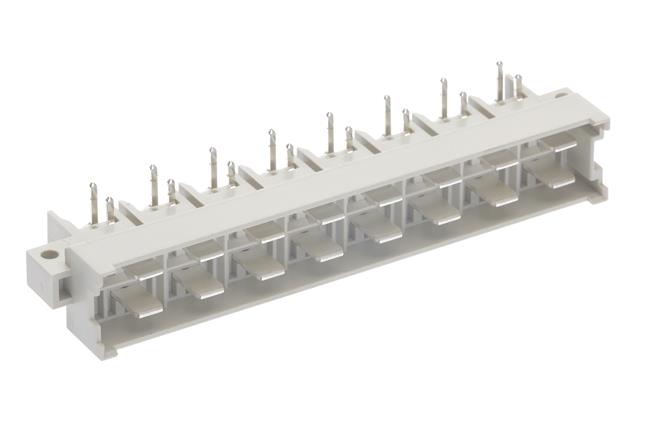

Introducing the DIN 41612 Type H16 Male Connector, a high-performance solution for PCB to cable connections. Constructed with durable thermoplastic resin and glass-fibre filling, this connector ensures reliable performance in demanding environments. Featuring wave soldering termination and a rated current of 15A, it offers secure and efficient power transmission. With 16 contacts plated in silver and tin over nickel, it guarantees excellent conductivity and corrosion resistance. Operating at temperatures ranging from -55°C to 125°C, it is suitable for a wide range of applications. Compliant with Class I performance standards and capable of 500 mating cycles, it is a dependable choice for backplane and PCB connectivity. Upgrade your system with the DIN 41612 Type H16 Male Connector. ( 09061162511)
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
