| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09062316822 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 31 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal, Silver, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 5.08 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 15 A, 6 A |
| Voltage Rating: | 1.55 kV, 3.1 kV |
| SKU: | HRT09062316822 |
09062316822
Specifications
Detailed Description

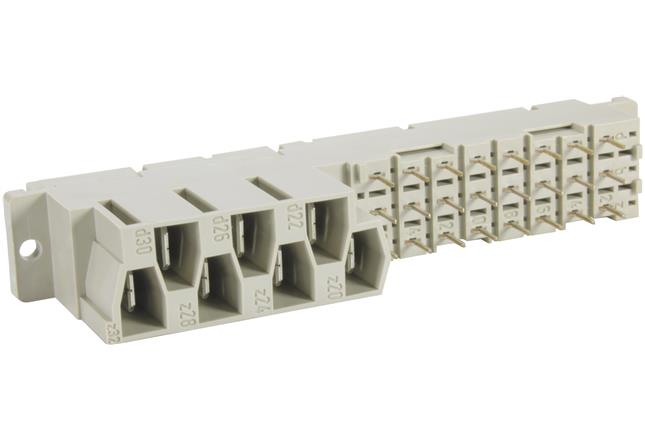

The DIN 41612 Type MH 24+7 Female Connector is a reliable and high-performance component designed for board-to-board PCB connections. With a robust construction featuring thermoplastic resin and glass-fibre filled housing, it ensures durability and longevity in demanding industrial environments. This pebble gray connector offers 31 gold-plated contacts with solder termination, guaranteeing secure and efficient signal transmission. Certified for RoHS compliance and UL 94V-0 flammability rating, it meets stringent industry standards for safety and environmental responsibility. Suitable for a wide range of applications, from telecommunications to aerospace, this DIN 41612 connector is a versatile solution for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
