| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09062322823 |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 32 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 5.08 mm |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Performance Level: | Class I |
| Current Rating: | 6 A |
| Voltage Rating: | 1.55 kV, 2.5 kV |
| SKU: | HRT09062322823 |
09062322823
Specifications
Detailed Description

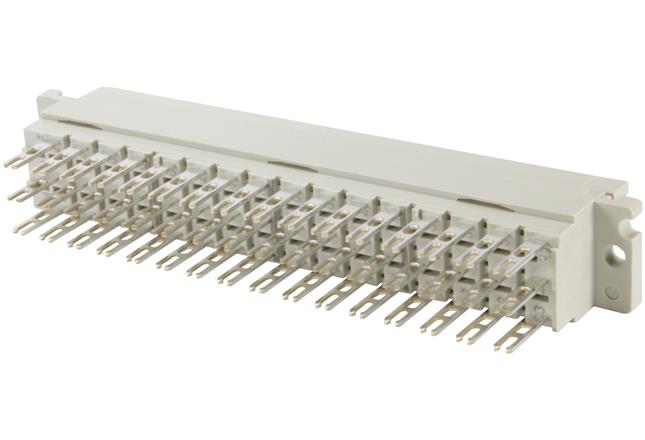

Introducing the DIN 41612 Type F Connector, a high-performance solution for seamless PCB to cable connections. This female connector, constructed with durable thermoplastic resin and glass-fibre filling, ensures reliable and long-lasting performance. Featuring solder lug termination and a rated current of 6A, it offers secure connectivity in various applications. With 32 contacts arranged in 3 rows and a pitch of 5.08mm, it provides ample connectivity options. Tin over nickel and noble metal over nickel contact plating guarantee optimal conductivity. Operating efficiently in temperatures ranging from -55°C to 125°C, this connector is suitable for diverse environments. Ideal for backplane and PCB applications, it meets Class I performance standards with a voltage rating of 1.55kV and 2.5kV. With a mating cycle of 500, it ensures durability and longevity in use. Upgrade your connectivity with the DIN 41612 Type F Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
