| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09062322832 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 32 |
| Number of Rows: | 3 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 3.81 mm, 5.08 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 6 A |
| Voltage Rating: | 1.55 kV |
| SKU: | HRT09062322832 |

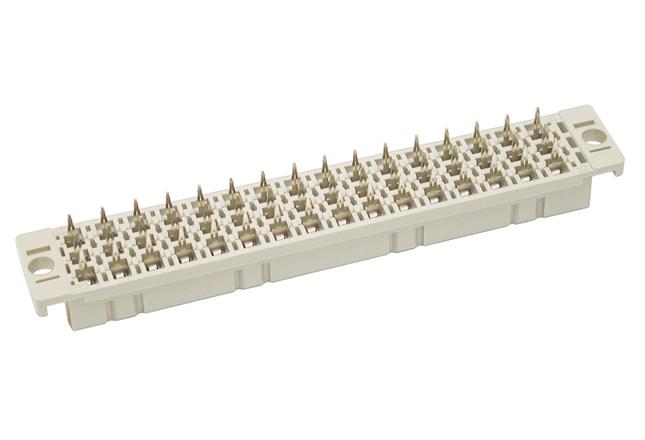

09062322832
Specifications
Detailed Description
Introducing the 09062322832, a high-performance DIN 41612 Type F Connector designed for seamless motherboard to daughtercard connectivity in Mezzanine applications. This female connector boasts a durable construction of thermoplastic resin with glass-fibre filling, ensuring reliability in operation. With 32 contacts arranged in 3 rows and a pitch of 5.08mm, it offers efficient signal transmission. The press-fit termination method guarantees secure attachment, while the copper alloy contacts with nickel plating provide excellent conductivity. Operating in a wide temperature range from -40°C to 105°C, it is suitable for diverse environments. With a current rating of 6A and voltage rating of 1.55kV, it meets high-performance requirements. Its UL 94V-0 flammability rating ensures safety. Trust the 09062322832 for your board to board PCB connector needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
