| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09062322843 |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 32 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 5.08 mm |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Performance Level: | Class I |
| Current Rating: | 6 A |
| Voltage Rating: | 1.55 kV, 2.5 kV |
| SKU: | HRT09062322843 |

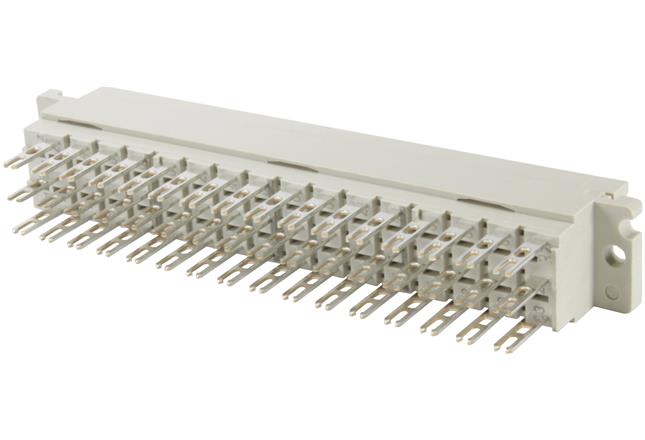

09062322843
Specifications
Detailed Description
Introducing the DIN 41612 Type F Female Connector, a high-performance solution for your PCB to cable connections. Made from durable thermoplastic resin with glass-fibre filling, this connector ensures reliable signal transmission in demanding environments. Featuring a solder lug termination method, it offers secure and stable connectivity. With a rated current of 6A, it can handle power-intensive applications with ease. With 32 contacts in 3 rows, it provides ample connectivity options. The tin over nickel contact plating guarantees excellent conductivity and corrosion resistance. Operating temperature ranging from -55°C to 125°C, it is suitable for a wide range of industrial applications. Compliant with Class I performance standards and offering a maximum voltage rating of 2.5kV, this connector is a dependable choice for backplane and board-to-board connections. Upgrade your connectivity setup with the DIN 41612 Type F Female Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
