| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09062326843 |
| Pitch: | 5.08 mm |
| Gender: | Female |
| Series: | DIN 41612 |
| Mount Angle: | Straight |
| Mating Cycles: | 400 cycle |
| Current Rating: | 6 A |
| Number of Rows: | 3 |
| Voltage Rating: | 1.55 kV, 2.5 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Housing Material: | Glass-Filled Plastic |
| Performance Level: | Class II |
| Number of Contacts: | 32 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09062326843 |
09062326843
Specifications
Detailed Description

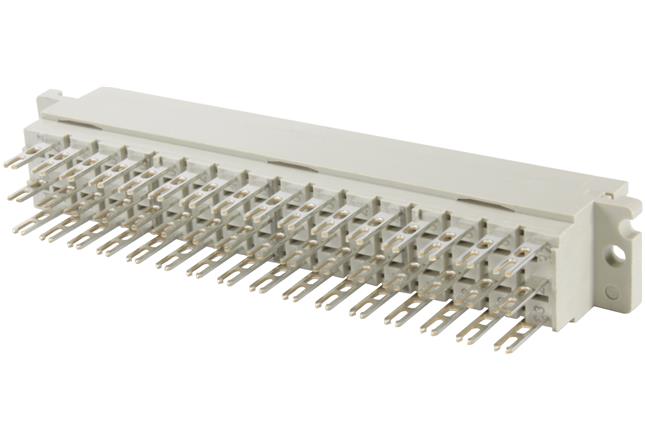

The 09062326843 is a DIN 41612 Type F Female Connector designed for reliable PCB to cable connections. Made of durable thermoplastic resin with glass-fibre reinforcement, this connector ensures robust performance in various applications. Featuring solder lug termination, it offers secure and stable connectivity. With a rating of 6A, it can handle moderate current levels with ease. The 32 contacts arranged in 3 rows provide ample connectivity options. With a pitch of 5.08mm, it offers easy integration into PCB layouts. Operating temperature ranging from -55°C to 125°C, it is suitable for use in harsh environments. RoHS compliant and with voltage ratings of 1.55kV and 2.5kV, this connector meets international standards for safety and environmental responsibility. Perfect for backplane and board-to-board connections, the 09062326843 is a reliable solution for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
