| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09062326897 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 32 |
| Number of Rows: | 3 |
| Termination Method: | Press-Fit, Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 3.81 mm, 5.08 mm |
| Mount Angle: | Straight |
| Tail Length: | 13 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 6 A |
| Voltage Rating: | 1.55 kV |
| SKU: | HRT09062326897 |
09062326897
Specifications
Detailed Description

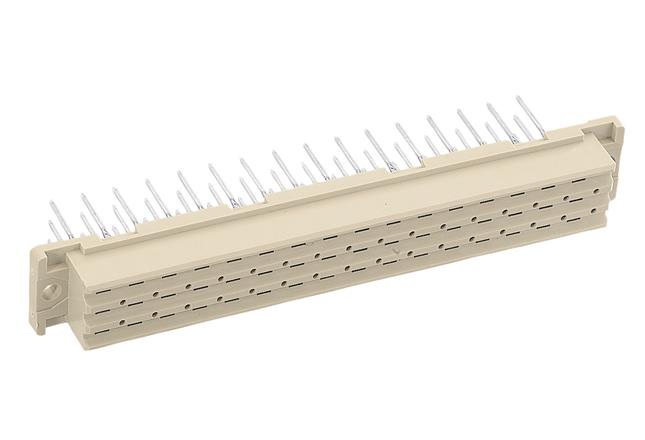

Introducing the 09062326897, a high-performance DIN 41612 Type F Connector designed for seamless motherboard to daughtercard connectivity in mezzanine applications. This female connector features a rugged construction with thermoplastic resin and glass-fibre filling, ensuring durability and reliability in demanding environments. With 32 contacts arranged in 3 rows, it offers ample connectivity options. The press-in termination method allows for easy and secure installation. Contact plating with nickel and noble metal ensures excellent conductivity, while a maximum operating temperature of 105°C and a flammability rating of UL 94V-0 guarantee safety. Suitable for board-to-board PCB connections, this connector is ideal for a wide range of applications in industries such as telecommunications, aerospace, and automotive. Upgrade your connectivity solutions with the 09062326897.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
