| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09062482832 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 48 |
| Number of Rows: | 3 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 3.81 mm, 5.08 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 6 A |
| Voltage Rating: | 1.55 kV |
| SKU: | HRT09062482832 |
09062482832
Specifications
Detailed Description

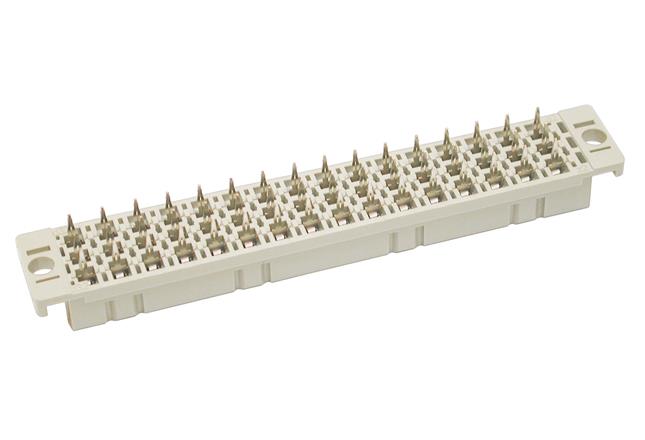

Introducing the DIN 41612 Type F Connector, a high-performance solution for connecting motherboards to daughtercards in mezzanine applications. This female connector features a durable thermoplastic resin housing reinforced with glass fibers, ensuring reliable performance in demanding environments. With 48 contacts arranged in 3 rows on a 5.08mm pitch, it allows for efficient data transmission. The press-fit termination method offers secure and stable connections, while the copper alloy contacts plated with nickel provide excellent conductivity. Operating temperature ranges from -40°C to 105°C, making it suitable for a wide range of applications. Rated for 6A and 1.55kV, this connector meets stringent quality standards. RoHS compliant and UL 94V-0 rated for safety, it is ideal for use in various industries. Upgrade your connectivity with the DIN 41612 Type F Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
