| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09062486821 |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 48 |
| Number of Rows: | 3 |
| Termination Method: | Wire Wrap |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 5.08 mm |
| Mount Angle: | Straight |
| Tail Length: | 22 mm |
| Mating Cycles: | 400 cycle |
| Performance Level: | Class II |
| Current Rating: | 6 A |
| Voltage Rating: | 1.55 kV, 2.5 kV |
| SKU: | HRT09062486821 |
09062486821
Specifications
Detailed Description

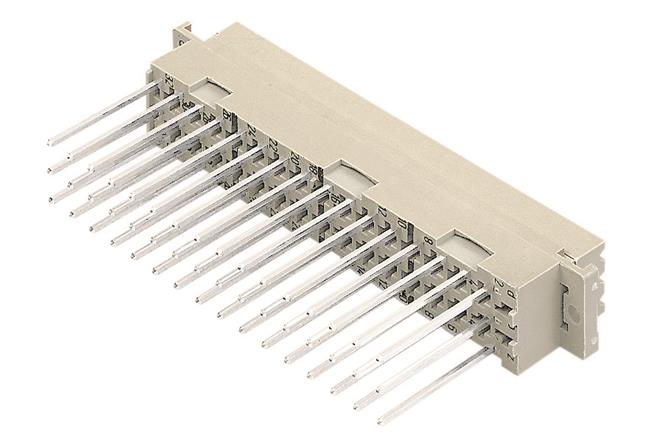

Introducing the 09062486821, a high-performance DIN 41612 Type F Connector designed for seamless connectivity in electronic systems. This Female connector features a rugged construction with Thermoplastic resin and glass-fibre filling, ensuring durability and reliability in harsh environments. With PCB to cable and Cable to cable compatibility, it offers versatile installation options. The Wire Wrap termination method guarantees secure connections, while the Nickel plating with Noble Metal overlay ensures excellent conductivity. Operating temperature ranges from -55°C to 125°C, making it suitable for a wide range of applications. With 48 contacts arranged in 3 rows and a pitch of 5.08mm, it provides ample connectivity options. Meeting Class II performance standards, it offers dependable operation with a current rating of 6A and voltage rating of 1.55kV/2.5kV. Perfect for Backplane and PCB connections, this connector is a must-have for any electronic setup.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
