| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09062486826 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 48 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 5.08 mm |
| Mount Angle: | Right Angle |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 6 A |
| Voltage Rating: | 1.55 kV |
| SKU: | HRT09062486826 |
09062486826
Specifications
Detailed Description

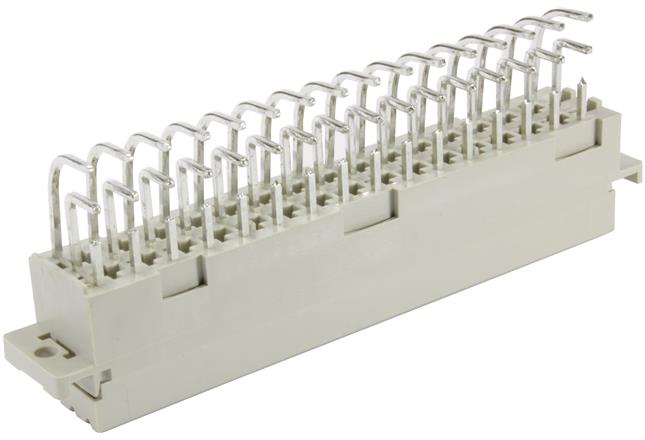

Introducing the DIN 41612 Type F Connector, a versatile and reliable solution for connecting motherboards to daughtercards, extender cards, and PCBs to cables. This female connector features a durable housing made of thermoplastic resin with glass-fibre fill, ensuring strength and longevity. With 48 contacts spread across 3 rows and a pitch of 5.08mm, it offers ample connectivity options. The solder termination method, along with copper alloy contacts plated with tin over nickel and noble metal, guarantees excellent conductivity. Operating temperature ranging from -55°C to 125°C, UL 94V-0 flammability rating, and RoHS compliance ensure safety and environmental responsibility. Rated for 6A at 1.55kV, this connector is suitable for a wide range of applications in industrial and electronic devices. With a mating cycle of 400, it offers lasting performance, making it an essential component in board-to-board and PCB connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
