09110006123

HRT09110006123
Heilind Number:HRT09110006123
Manufacturer:HARTING
Manufacturer Number:09110006123
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09110006123
Series:TC 200
Gender:Male
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Silver
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:0.3 mOhm
Mating Cycles:500 cycle
Wire Size:70 mm²
Contact Design:Machined
Current Rating:200 A
Stripping Length:22.5 mm
SKU:HRT09110006123

Detailed Description

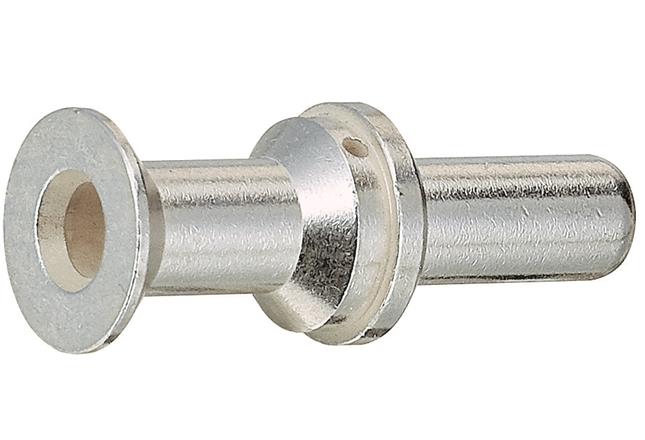

Introducing the HARTING Crimp Contact, Male, part of the TC 200 series. This high-performance termination technology is designed for secure and reliable connections in a variety of applications. With a wire size of 70 mm² and a current rating of 200 A, it is ideal for power transmission. The contact is made of durable copper alloy with silver plating, ensuring excellent conductivity and corrosion resistance. Its machined design and 22.5 mm stripping length make installation quick and easy. Operating smoothly in temperatures ranging from -40°C to 125°C, and with a low contact resistance of 0.3 mOhm, it guarantees optimal performance even in demanding environments. Trust the HARTING Crimp Contact for efficient and long-lasting connectivity solutions.
