09110006139

HRT09110006139
Heilind Number:HRT09110006139
Manufacturer:HARTING
Manufacturer Number:09110006139
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09110006139
Series:TC 350
Gender:Male
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Silver
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:0.3 mOhm
Mating Cycles:500 cycle
Wire Size:25 mm²
Contact Design:Machined
Current Rating:350 A
Stripping Length:26 mm
SKU:HRT09110006139

Detailed Description

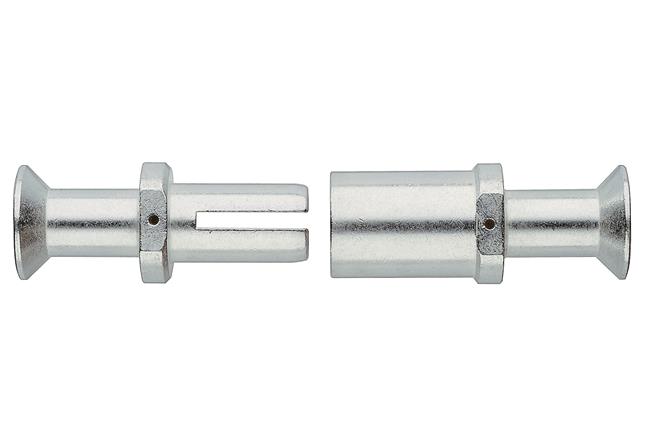

The HARTING Han TC350 male contact 25mm², part of the TC 350 series, offers reliable termination technology for high-current applications. Featuring a crimp termination method, this contact is designed for easy and secure installation. Made of copper alloy with silver plating, it ensures excellent conductivity and corrosion resistance. With a wide operating temperature range of -40°C to 125°C, it is suitable for use in various environments. The machined contact design guarantees precise and durable performance, with a low contact resistance of 0.3 mOhm. Rated for 350 A current, this contact is ideal for power transmission in demanding industrial settings. Its 500 mating cycle durability and 26 mm stripping length further enhance its usability, making it a reliable choice for critical connectivity solutions.
