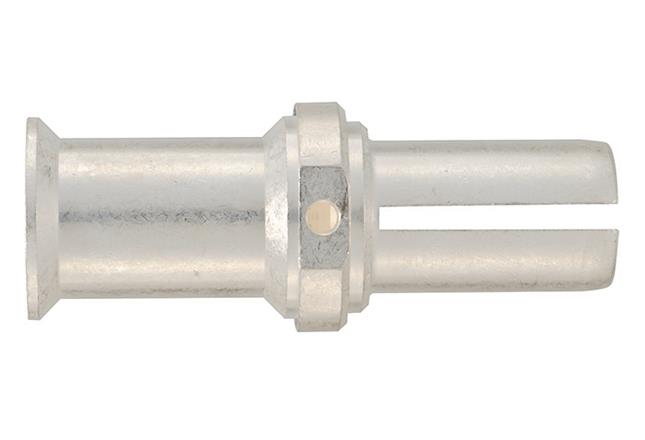

09110006163

HRT09110006163
Heilind Number:HRT09110006163
Manufacturer:HARTING
Manufacturer Number:09110006163
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09110006163
Series:TC 650
Gender:Male
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Silver
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:0.3 mOhm
Mating Cycles:500 cycle
Wire Size:120 mm²
Contact Design:Machined
Current Rating:650 A
Stripping Length:42 mm
SKU:HRT09110006163

Detailed Description

HARTING's TC 650 Crimp Contact for male connectors is designed for high-performance termination in industrial applications. With a wire size of 120mm², this contact ensures secure and efficient connectivity, capable of handling currents up to 650A. Crafted from copper alloy with silver plating, it offers excellent conductivity and durability even in harsh environments, with an operating temperature range from -40°C to 125°C. The machined contact design guarantees reliable signal transmission, with a low contact resistance of 0.3 mOhm. RoHS compliant and rated for 500 mating cycles, it meets stringent quality standards for enhanced performance and longevity. Perfect for use with HARTING's range of termination technologies, this crimp contact guarantees seamless integration and optimal functionality in any industrial setting.
