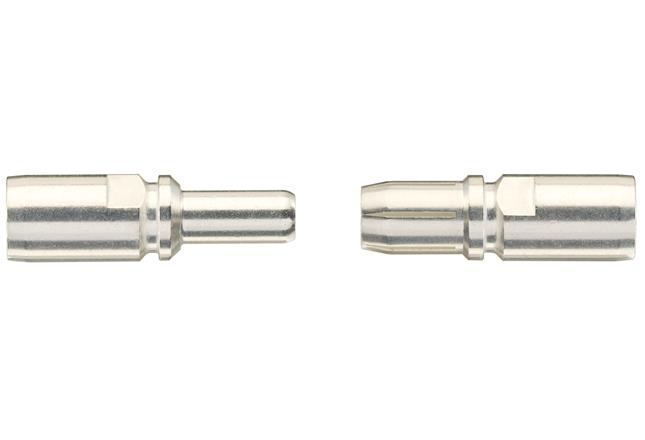

09110006212

HRT09110006212
Heilind Number:HRT09110006212
Manufacturer:HARTING
Manufacturer Number:09110006212
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09110006212
Series:TC 100
Gender:Female
Termination Method:Screw
Contact Material:Copper Alloy
Contact Plating:Silver
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:0.3 mOhm
Mating Cycles:500 cycle
Wire Size:10 - 25 mm²
Contact Design:Machined
Current Rating:100 A
Stripping Length:13 mm
SKU:HRT09110006212

Detailed Description

Introducing the HARTING HC contact, featuring a female termination method ideal for high-performance applications. Part of the TC 100 series, this contact boasts a durable construction with copper alloy material and silver plating, ensuring reliable conductivity. With a wide operating temperature range from -40°C to 125°C, it is suitable for various environments. The machined contact design guarantees precision and a low contact resistance of 0.3 mOhm. Supporting wire sizes from 10 to 25 mm², it can handle currents up to 100 A, making it perfect for power transmission. With 500 mating cycles and RoHS compliance, this contact offers longevity and environmental responsibility. Don't compromise on quality - choose the HARTING HC contact for your connectivity needs.
