09110006221

HRT09110006221
Heilind Number:HRT09110006221
Manufacturer:HARTING
Manufacturer Number:09110006221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09110006221
Series:TC 200
Gender:Female
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Silver
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:0.3 mOhm
Mating Cycles:500 cycle
Wire Size:35 mm²
Contact Design:Machined
Current Rating:200 A
Stripping Length:20 mm
SKU:HRT09110006221

Detailed Description

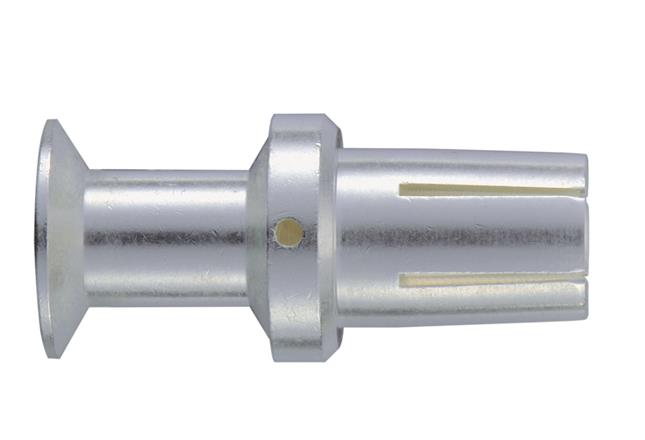

HARTING's TC 200 Crimp Contact is a high-performance solution for terminating wires with ease and reliability. Designed for female connectors, this contact features a durable Copper Alloy construction with Silver plating for optimal conductivity. With a wire size of 35 mm², it can handle high current ratings up to 200 A, making it ideal for power applications. Its machined contact design ensures precision and low contact resistance of 0.3 mOhm. Operating in temperatures ranging from -40°C to 125°C, this contact is suitable for a wide range of environments. With RoHS compliance and a lifespan of 500 mating cycles, it guarantees both performance and sustainability. Perfect for applications in connectors, wire housings, and hi-rel environments, the TC 200 Crimp Contact is a reliable choice for your termination needs.
