| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09110006223 |
| Series: | TC 200 |
| Gender: | Female |
| Termination Method: | Crimp |
| Contact Material: | Copper Alloy |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| Contact Resistance: | 0.3 mOhm |
| Mating Cycles: | 500 cycle |
| Wire Size: | 70 mm² |
| Contact Design: | Machined |
| Current Rating: | 200 A |
| Stripping Length: | 22.5 mm |
| SKU: | HRT09110006223 |
09110006223
| Heilind Number: | HRT09110006223 |
| Manufacturer: | HARTING |
| Manufacturer Number: | 09110006223 |
| Datasheet: | Datasheet |
| ECAD Model: | |
Description:
HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique
More >>Specifications
Detailed Description

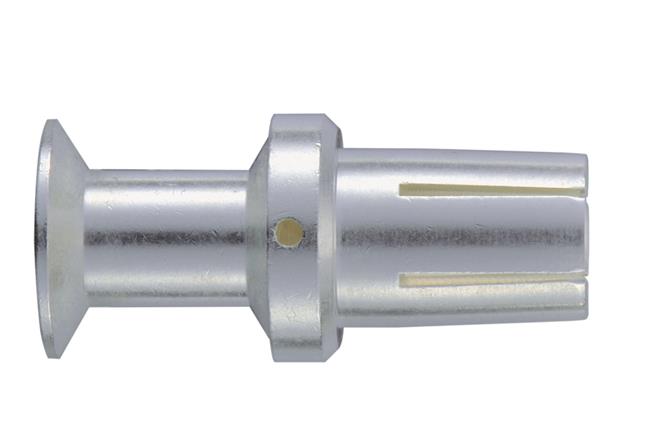

Introducing the HARTING TC 200 series Crimp Contact, a high-performance female termination solution designed for optimal connectivity in demanding industrial environments. With a wire size capacity of 70 mm² and a current rating of 200 A, this contact ensures efficient power transmission. Its copper alloy construction with silver plating guarantees durability and low contact resistance of 0.3 mOhm. Engineered for reliability, it offers a mating cycle of 500, making it ideal for high-volume applications. The machined contact design and 22.5 mm stripping length facilitate easy installation. Operating efficiently in temperatures ranging from -40 °C to 125 °C, this RoHS-compliant contact is suitable for a wide range of industrial settings, ensuring secure and stable connections. Upgrade your connectivity solutions with the HARTING TC 200 series Crimp Contact.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 09/02/2022 | PCN22001CN-US - product change. Implementation of a radius to the end of the inlet funnel of the crimp hole. This change optimizes handling in the crimping process. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
