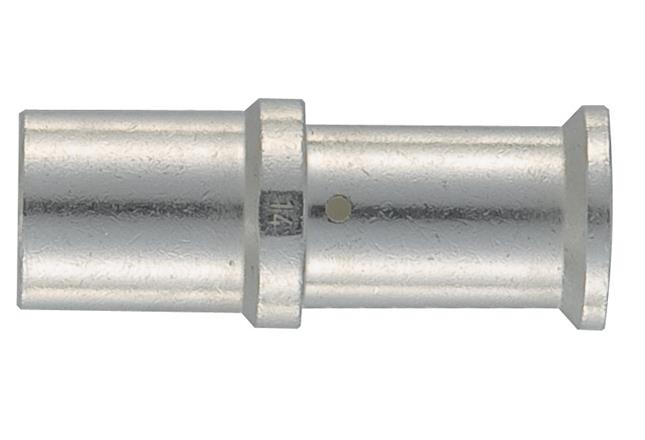

09110006227

HRT09110006227
Heilind Number:HRT09110006227
Manufacturer:HARTING
Manufacturer Number:09110006227
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09110006227
Gender:Female
Series:TC 250
Wire Size:35 mm²
Mating Cycles:500 cycle
Contact Design:Machined
Current Rating:250 A
Contact Plating:Silver
Contact Material:Copper Alloy
Stripping Length:22 mm
Contact Resistance:0.3 mOhm
Termination Method:Crimp
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
SKU:HRT09110006227

Detailed Description

The HARTING TC 250 Crimp Contact, Female, 35 MM2, 09110006227, offers reliable termination technology for high-current applications. Designed for ease of use, this female contact features a crimp termination method and is suitable for wire sizes up to 35 mm². Constructed from durable copper alloy with silver plating, it ensures excellent conductivity and corrosion resistance. With a current rating of 250 A and a low contact resistance of 0.3 mOhm, it guarantees efficient power transmission. The machined contact design and 22 mm stripping length further enhance its performance. Operating smoothly in a wide temperature range from -40 °C to 125 °C, this contact is suitable for various industrial environments. With a mating cycle of 500, it offers long-term durability, making it a dependable choice for connectors and wire housings in demanding applications.
