09110006229

HRT09110006229
Heilind Number:HRT09110006229
Manufacturer:HARTING
Manufacturer Number:09110006229
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09110006229
Series:TC 250
Gender:Female
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Silver
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:0.3 mOhm
Mating Cycles:500 cycle
Wire Size:70 mm²
Contact Design:Machined
Current Rating:250 A
Stripping Length:22 mm
SKU:HRT09110006229

Detailed Description

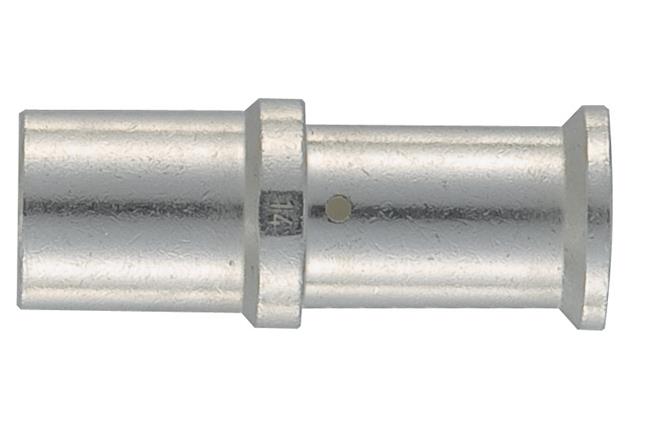

The HARTING TC 250 Crimp Contact is a reliable and efficient solution for terminating wires in industrial settings. This female contact, featuring a 70 mm² wire size, is designed for high current applications, with a maximum operating temperature of 125 °C and a current rating of 250 A. Constructed with copper alloy and silver plating, it offers low contact resistance (0.3 mOhm) and durability for up to 500 mating cycles. The machined contact design ensures precise and secure connections. With RoHS compliance and a stripping length of 22 mm, it meets industry standards for environmental responsibility and ease of installation. Perfect for use in connectors, wire housings, and other connectivity applications, the HARTING TC 250 Crimp Contact guarantees optimal performance and longevity in demanding environments.
