09110006239

HRT09110006239
Heilind Number:HRT09110006239
Manufacturer:HARTING
Manufacturer Number:09110006239
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09110006239
Series:TC 350
Gender:Female
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Silver
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:0.3 mOhm
Mating Cycles:500 cycle
Wire Size:25 mm²
Contact Design:Machined
Current Rating:350 A
Stripping Length:26 mm
SKU:HRT09110006239

Detailed Description

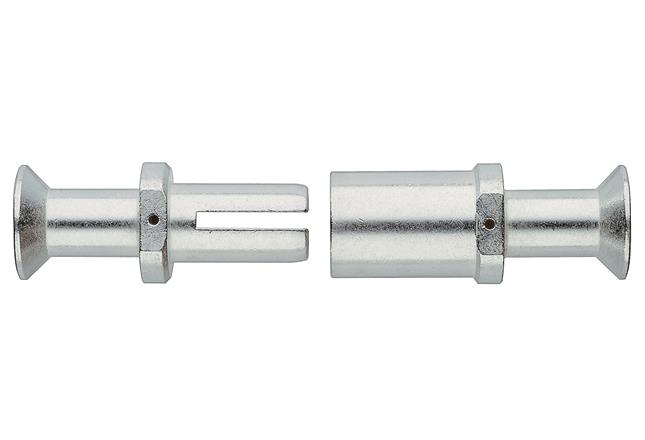

HARTING's Han TC350 female contact 25mm² is a high-performance termination solution for demanding applications. Designed for use with the TC 350 series, this contact features a crimp termination method for secure and reliable connections. Constructed from copper alloy with silver plating, it ensures excellent conductivity and corrosion resistance. With a maximum operating temperature of 125°C and a minimum of -40°C, it is suitable for a wide range of environments. The contact's machined design and 25mm² wire size allow for efficient power transmission, with a current rating of 350A. Tested for 500 mating cycles, it guarantees long-lasting performance. The 26mm stripping length facilitates easy installation. Perfect for high-power industrial and automotive applications, this contact meets the highest standards of quality and reliability.
