09110006241

HRT09110006241
Heilind Number:HRT09110006241
Manufacturer:HARTING
Manufacturer Number:09110006241
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09110006241
Series:TC 350
Gender:Female
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Silver
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:0.3 mOhm
Mating Cycles:500 cycle
Wire Size:50 mm²
Contact Design:Machined
Current Rating:350 A
Stripping Length:28 mm
SKU:HRT09110006241

Detailed Description

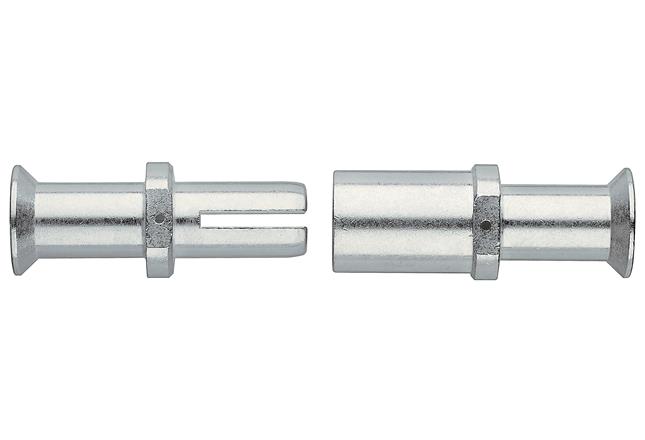

HARTING's Crimp Contact for female connectors in the TC 350 series offers efficient and reliable termination for high-power applications. With a wire size of 50 mm², this contact is capable of handling currents up to 350 A, making it ideal for demanding industrial environments. The copper alloy construction with silver plating ensures excellent conductivity and resistance to corrosion. Designed for easy installation, the crimp termination method allows for secure and durable connections. With a wide operating temperature range from -40°C to 125°C, this contact is suitable for use in diverse conditions. Meeting RoHS compliance standards, it is also environmentally friendly. Trust in HARTING's expertise in terminations technology for your connectivity needs.
