| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09110007536 |
| Gender: | Male |
| Series: | TC 300 |
| Wire Size: | 95 mm² |
| Mating Cycles: | 500 cycle |
| Contact Design: | Machined |
| Current Rating: | 300 A |
| Contact Plating: | Silver |
| Contact Material: | Copper Alloy |
| Stripping Length: | 23.5 mm |
| Contact Resistance: | 0.3 mOhm |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | HRT09110007536 |
09110007536
Specifications
Detailed Description

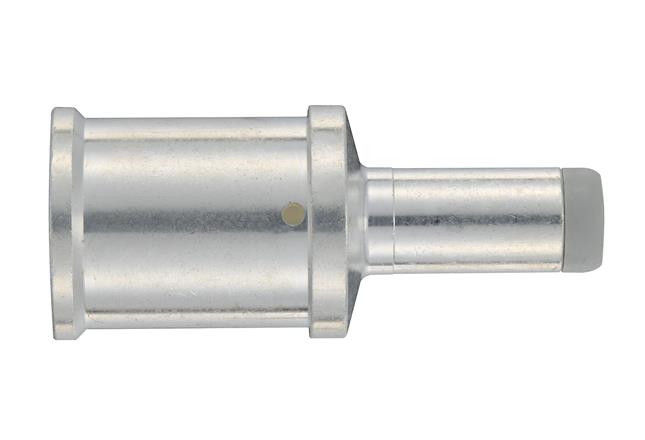

The 09110007536, part of the TC 300 series, is a high-performance male connector designed for crimp termination. Crafted with copper alloy contact material plated in silver, it ensures reliable conductivity in a wide temperature range from -40°C to 125°C. With a low contact resistance of 0.3 mOhm and a mating cycle of 500, this connector guarantees long-lasting and efficient performance. Its machined contact design and large wire size compatibility of 95 mm² make it ideal for heavy-duty applications requiring a current rating of 300 A. RoHS compliant and featuring a stripping length of 23.5 mm, it meets stringent environmental and quality standards. Perfect for use in demanding environments, this connector is a dependable choice for your connectivity needs.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 12/30/2024 | PI00000141-US - Production Relocation. We would like to inform you about the relocation of the production of Han TC300 contacts from Espelkamp/Germany to Sibiu/Romania. The relocation will be carried out because of strategic reasons inside the HARTING Technology Group. Design and function of the parts will not change. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
