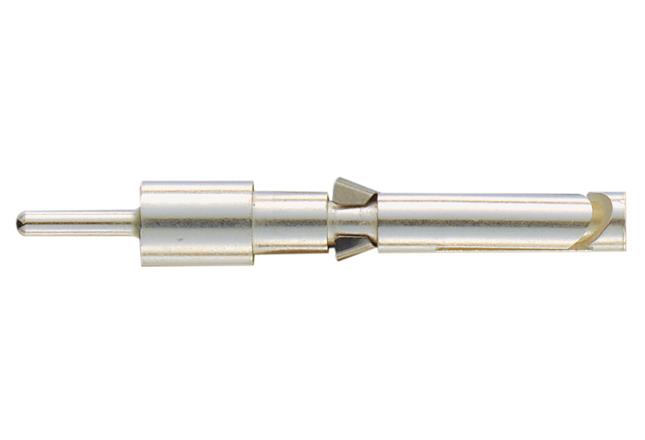

09150006290

HRT09150006290
Heilind Number:HRT09150006290
Manufacturer:HARTING
Manufacturer Number:09150006290
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09150006290
Series:Han D®
Gender:Female
Termination Method:Solder
Contact Material:Copper Alloy
Contact Plating:Silver
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:3 mΩ
Mating Cycles:500 cycle
Contact Design:Machined
Current Rating:7.5 A
SKU:HRT09150006290

Detailed Description

The HARTING 09150006290 is a high-performance double contact female connector designed for reliable and efficient termination in industrial applications. Part of the Han D® series, it features a solder termination method for secure and durable connections. Constructed with copper alloy contacts plated with silver, it ensures excellent conductivity and resistance to corrosion. With a maximum operating temperature of 125°C and a minimum of -40°C, it is suitable for use in a wide range of environments. The machined contact design guarantees precision and consistency, with a low contact resistance of 3 mΩ. Rated for 500 mating cycles and with a current rating of 7.5 A, it offers longevity and high performance. Fully RoHS compliant, it meets stringent environmental standards. Perfect for use in demanding industrial settings, this connector delivers exceptional quality and reliability.
