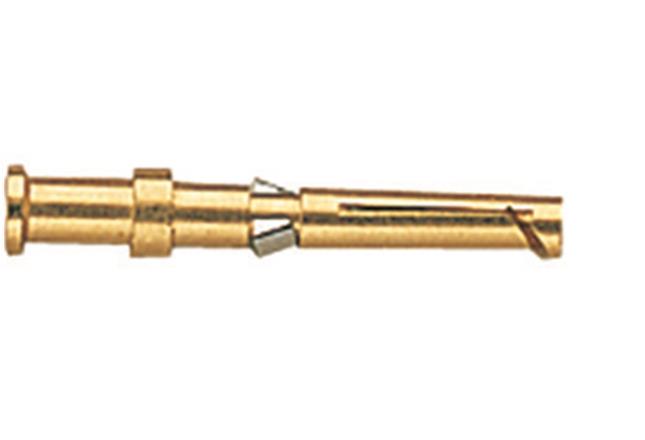

09152006223

Heilind Number:	HRT09152006223
Manufacturer:	HARTING
Manufacturer Number:	09152006223
Datasheet:	Datasheet
ECAD Model:

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

Attribute	Value
Product Category:	Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:	HARTING
Manufacturer Part Number:	HARTING 09152006223
Series:	Han D® HMC
Gender:	Female
Termination Method:	Crimp
Contact Material:	Copper Alloy
Contact Plating:	Gold
Maximum Operating Temperature:	125 °C
Minimum Operating Temperature:	-40 °C
Contact Resistance:	3 mΩ
Mating Cycles:	10000 cycle
Wire Size:	20 AWG
Contact Design:	Machined
Current Rating:	10 A
Stripping Length:	8 mm
SKU:	HRT09152006223

Detailed Description

Introducing the HARTING 09152006223, a high-performance crimp contact designed for seamless connectivity in the Han D® HMC series. This female contact, boasting a wire size of 20 AWG and a contact design that is machined to perfection, guarantees reliable and efficient termination. Crafted from durable copper alloy with a gold plating, it ensures optimal conductivity and corrosion resistance, even in demanding environments. With a current rating of 10 A and a low contact resistance of 3 mΩ, it meets the most stringent performance requirements. RoHS compliant and capable of withstanding temperatures ranging from -40 °C to 125 °C, this contact is not only reliable but also environmentally friendly. Perfect for applications where precision and durability are paramount, the HARTING 09152006223 is the ultimate solution for your connectivity needs.
