| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185065903 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 6 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185065903 |
09185065903
Specifications
Detailed Description

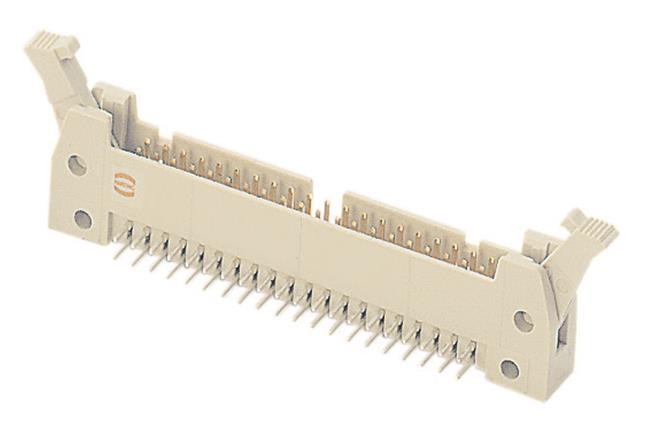

The SEK Standard Male Connector is a reliable and durable component for your PCB to cable connections. Made of high-quality thermoplastic resin (PBT) in a neutral beige color, it offers excellent performance in a wide range of operating temperatures from -55°C to 125°C. With a wave soldering termination method, installation is efficient and secure. This connector features 6 contacts in 2 rows, each made of copper alloy with tin over nickel plating for optimal conductivity. Rated for 1A of current and 1kV of voltage, it ensures safe and efficient power transmission. With a pitch of 2.54mm and IP20 rating for protection against solids, it is suitable for various applications. UL 94V-0 flammability rating guarantees safety compliance. Whether for industrial or commercial use, the SEK Standard Male Connector delivers reliable connectivity you can trust.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
