| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185067903 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 6 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185067903 |
09185067903
Specifications
Detailed Description

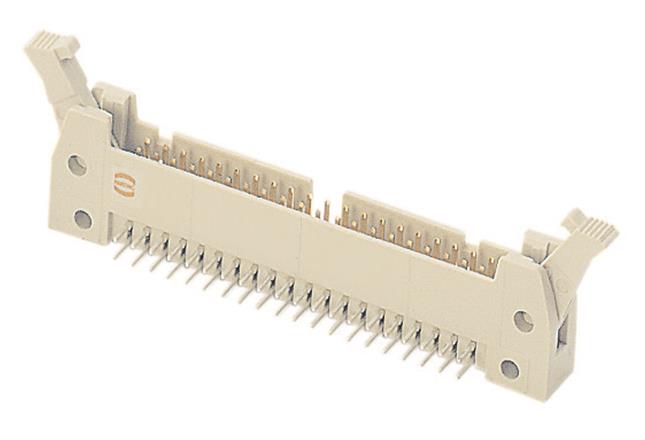

SEK Standard Connector, SKU 09185067903, is a reliable male connector designed for seamless PCB to cable connections. Featuring a durable thermoplastic resin (PBT) housing in a sleek beige finish, this connector offers robust performance even in demanding environments. With wave soldering termination and a rated current of 1A, it ensures secure and efficient connectivity. The connector boasts 6 contacts, each crafted from copper alloy with tin over nickel plating for enhanced conductivity and corrosion resistance. Operating temperature ranging from -55°C to 125°C, along with a flammability rating of UL 94V-0, guarantees safe usage. With a pitch of 2.54mm and IP20 rating, it is suitable for a wide range of applications. The right-angle mount and 2.9mm tail length provide flexibility in installation. Trusted for its quality and performance, the SEK Standard Connector is an essential component for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
