| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185067921 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 6 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 4.5 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185067921 |
09185067921
Specifications
Detailed Description

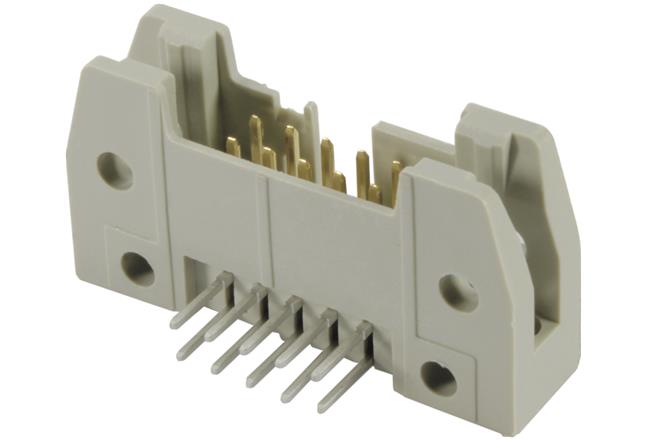

The SEK Standard Male Connector, featuring a durable thermoplastic resin housing in beige, offers reliable connectivity for PCB to cable applications. With a wave soldering termination method, installation is efficient and secure. Rated for a current of 1A, this connector boasts six copper alloy contacts with tin over nickel and noble metal over nickel plating for optimal conductivity. Operating temperatures ranging from -55°C to 125°C ensure suitability for a variety of environments. Its 2.54mm pitch and right-angle mount angle make it versatile for different assembly configurations. Meeting flammability rating UL 94V-0 and with an IP20 rating, it guarantees safety and protection. With its high-quality construction and performance specifications, the SEK Standard Male Connector is an essential component in any electronic setup.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
