09185105911

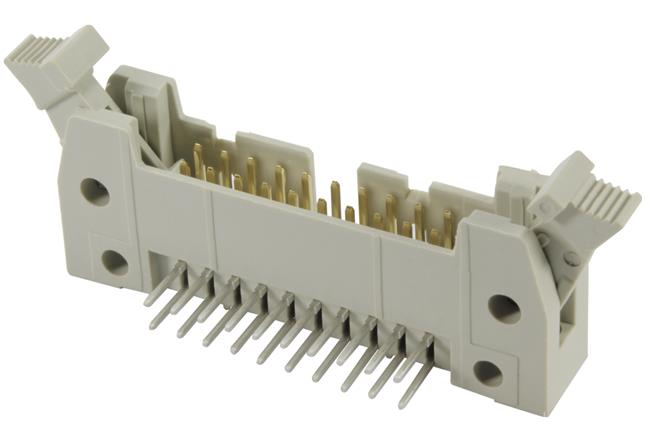

Introducing the SEK Standard Male Connector, a reliable and efficient solution for PCB to cable connections. Made from durable thermoplastic resin (PBT) in a sleek beige color, this connector features wave soldering termination for easy installation. With a rated current of 1A and 10 contacts, it ensures secure and stable connectivity. The Gray version of this connector, part of the SEK Standard series, is crafted from high-quality plastic and boasts a contact material of copper alloy with tin over nickel plating. Operating in a wide temperature range from -55°C to 125°C, it guarantees performance in diverse environments. With a pitch of 2.54mm and IP20 rating, it offers versatility and protection. The right-angle mount and 4.5mm tail length make it suitable for various applications. UL 94V-0 flammability rating and 1kV voltage rating ensure safety and reliability. Perfect for use in hi-rel settings, the SEK Male Connector ( 09185105911) is a top choice for professionals in need of premium connectivity solutions.
