| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185106321 |
| Color: | Gray |
| Series: | SEK Low-profile |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 10 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185106321 |
09185106321
Specifications
Detailed Description

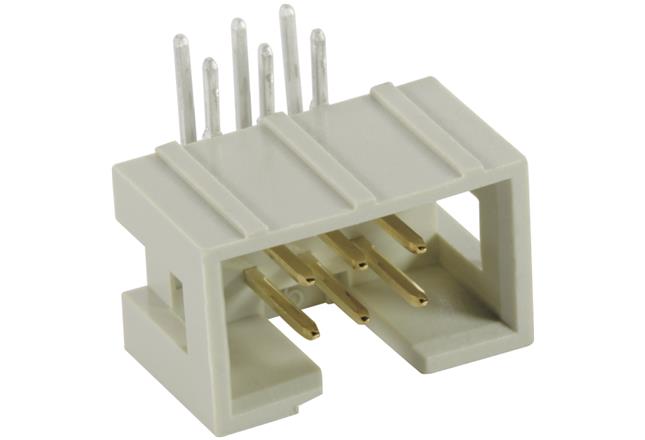

The SEK Low-profile Connector, SKU 09185106321, is a male connector designed for seamless PCB to cable connections. Made from durable thermoplastic resin (PBT) in a sleek beige color, this connector ensures reliable performance even in challenging environments. With a wave soldering termination method and a rated current of 1A, it offers efficient power transmission. Featuring 10 contacts in 2 rows, each contact is made of copper alloy with tin over nickel plating, guaranteeing optimal conductivity. Operating at temperatures ranging from -55°C to 125°C, this connector is suitable for a variety of applications. With a pitch of 2.54mm, IP20 rating, and right-angle mount angle, it provides flexibility in installation. Its high-quality construction, with a UL 94V-0 flammability rating, ensures safety and durability. Perfect for board-to-board PCB connections, the SEK Connector is a reliable solution for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
