| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185106813 |
| Series: | SEK |
| Gender: | Female |
| Housing Material: | Plastic |
| Number of Contacts: | 10 |
| Number of Rows: | 2 |
| Termination Method: | IDC |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 1.27 mm, 2.54 mm |
| Housing Color: | Gray |
| Mating Cycles: | 250 cycle |
| Wire Size: | 28 - 26 AWG |
| Performance Level: | Class II |
| Current Rating: | 2.5 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185106813 |
09185106813
Specifications
Detailed Description

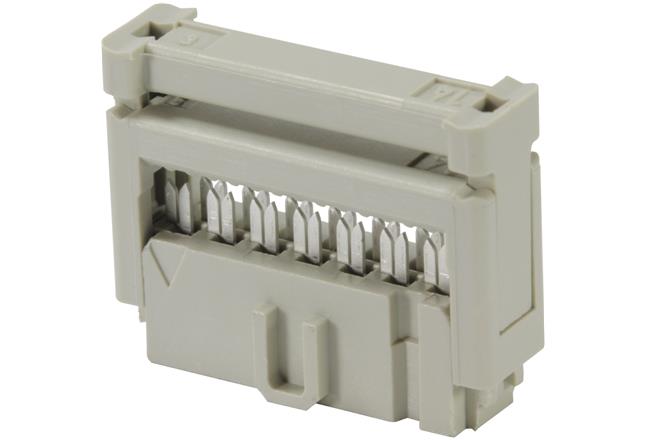

Introducing the SEK Female Connector, designed for reliable and efficient connectivity in various applications. This connector features a thermoplastic resin (PBT) housing in a sleek beige finish, with 10 gold-over-nickel and tin-over-nickel contacts for optimal conductivity. With a pitch of 2.54mm and 1.27mm, it offers versatility in installations. Rated for a maximum current of 2.5A and voltage of 1kV, it ensures safe and stable performance even in demanding environments. The IDC termination method simplifies installation, accommodating wire sizes from 28 to 26 AWG. With a wide operating temperature range from -55°C to 125°C and 250 mating cycles, this connector is built to last. RoHS compliant and in stock for immediate delivery, it guarantees both quality and convenience. Perfect for use in high-speed data transmission, telecommunications, and industrial equipment, the SEK Female Connector is a must-have component for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
