| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185107913 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 10 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185107913 |

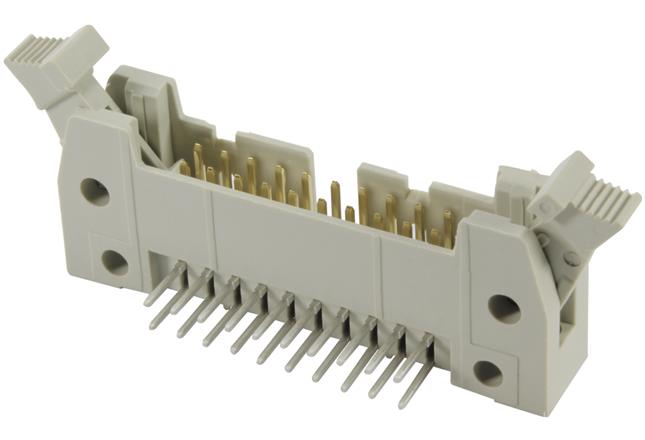

09185107913
Specifications
Detailed Description
SEK Standard Male Connectors are essential components for seamless PCB to cable connections. Crafted from durable beige thermoplastic resin (PBT), these connectors guarantee reliable performance in various electronic applications. With a wave soldering termination method and ten copper alloy contacts plated with tin over nickel, they ensure efficient signal transmission. Rated for 1A current and 1kV voltage, these connectors offer optimal conductivity and safety. Suitable for a wide range of environments with an operating temperature range from -55°C to 125°C, they meet the stringent UL 94V-0 flammability rating. With a pitch of 2.54mm and right-angle mount angle, they facilitate easy installation on PCBs. ROHS compliant and IP20 rated, these connectors prioritize environmental sustainability and protection against dust and moisture ingress. Trust in the SEK Standard Male Connectors for robust and high-performance connectivity solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
