| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185107922 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 10 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185107922 |

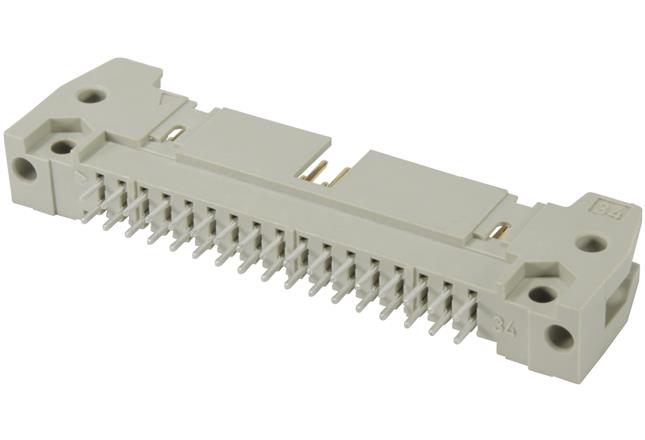

09185107922
Specifications
Detailed Description
SEK Standard Male Connectors are essential components for seamless PCB to cable connections. Constructed with durable thermoplastic resin (PBT) in a sleek beige hue, these connectors offer reliable performance in a range of environments. Featuring a wave soldering termination method, they ensure easy and secure installation. With a rated current of 1A and 10 copper alloy contacts, these connectors facilitate efficient power and signal transmission. Their tin over nickel contact plating guarantees excellent conductivity and corrosion resistance. Operating smoothly in temperatures ranging from -55°C to 125°C, they are suitable for diverse applications. With an IP20 rating for protection against dust and solid objects, these connectors offer peace of mind in industrial settings. The straight mount angle and 2.54mm pitch make them compatible with various PCB designs. Trust in the SEK Standard Male Connectors for robust and dependable connectivity solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
