| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185145324 |
| Color: | Gray |
| Pitch: | 2.54 mm |
| Gender: | Male |
| Series: | SEK Low-profile |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 250 cycle |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Plastic |
| Number of Contacts: | 14 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09185145324 |
09185145324
Specifications
Detailed Description

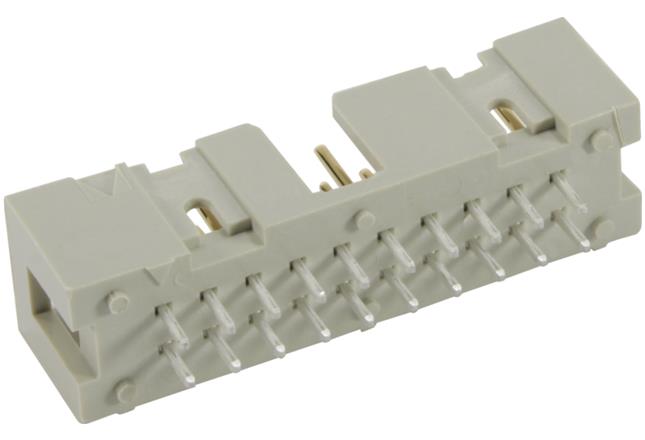

SEK Low-profile Connector ( 09185145324) offers reliable connectivity in a compact design. This male connector, made of durable thermoplastic resin (PBT) in a sleek beige finish, is ideal for PCB to cable applications with wave soldering termination. With a rated current of 1A, it ensures efficient power transmission. Featuring 14 contacts in 2 rows, each contact is meticulously crafted from copper alloy with tin over nickel plating for enhanced conductivity. Operating in a wide temperature range from -55°C to 125°C, it guarantees performance in diverse environments. With a pitch of 2.54mm, IP20 rating, and UL 94V-0 flammability rating, this connector prioritizes safety and reliability. Suitable for board to board PCB connections, it is a vital component in various electronic systems. (Character count: 155)
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
