| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185145329 |
| Color: | Gray |
| Series: | SEK Low-profile |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 14 |
| Number of Rows: | 2 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 5.5 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185145329 |
09185145329
Specifications
Detailed Description

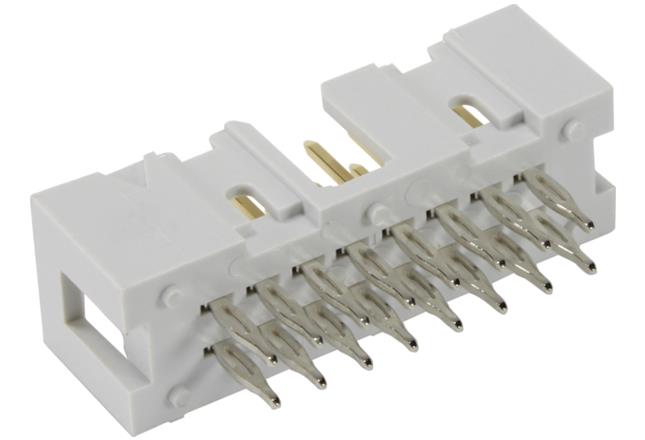

The SEK Low-profile Connector ( 09185145329) is a reliable solution for PCB to cable connections. Featuring a male connector design with 14 contacts in a 2-row configuration, this connector is made of durable thermoplastic resin (PBT) in a sleek beige color. With a press-in termination method and a current rating of 1A, it ensures secure and efficient power transmission. The contacts are made of copper alloy with nickel plating, offering excellent conductivity and corrosion resistance. Operating in temperatures ranging from -55°C to 105°C, it is suitable for a wide range of environments. With an IP20 rating for dust and moisture protection, along with UL 94V-0 flammability rating, it guarantees safety and reliability. Ideal for board to board PCB connections, this connector is a crucial component in electronic assemblies.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
