| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185145911 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 14 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 4.5 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185145911 |
09185145911
Specifications
Detailed Description

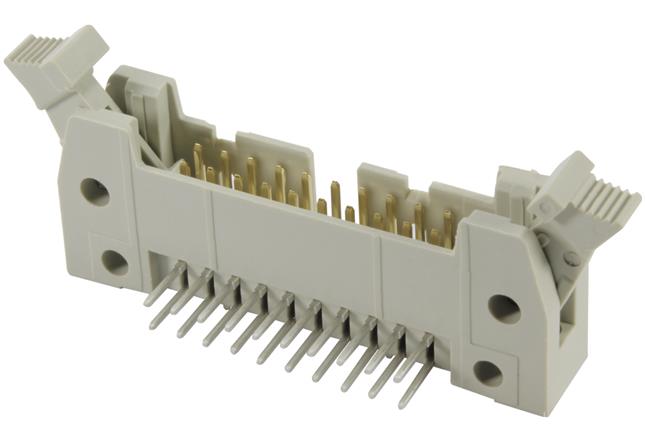

The SEK Standard Connector, SKU 09185145911, is a male connector designed for efficient PCB to cable connections. Made of durable thermoplastic resin (PBT) in a sleek beige color, it offers reliable performance in a variety of applications. With a wave soldering termination method and a rated current of 1A, this connector ensures secure and stable connectivity. Featuring 14 contacts in 2 rows, it allows for versatile use. Its copper alloy contacts with tin over nickel plating guarantee excellent conductivity and corrosion resistance. With a maximum operating temperature of 125°C and a minimum of -55°C, it is suitable for a wide range of environments. This connector, with a pitch of 2.54mm, IP20 rating, and UL 94V-0 flammability rating, is both safe and efficient. Perfect for PCB Pin Headers, it is a valuable component in any electronics assembly.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
