| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185146911 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 14 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 4.5 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185146911 |

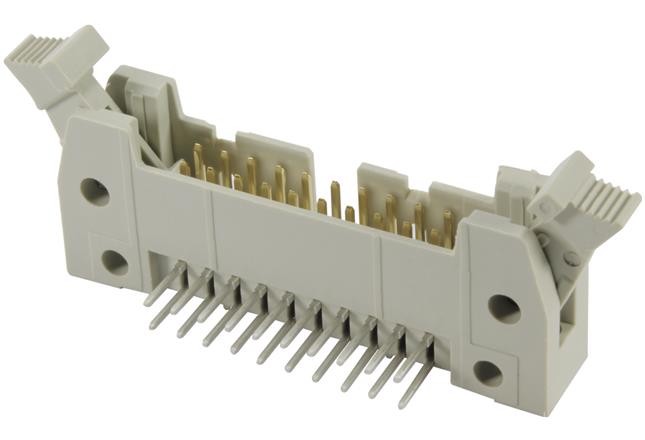

09185146911
Specifications
Detailed Description
SEK, Standard, Connector; Male connector; Thermoplastic resin (PBT), Beige; PCB to cable; Wave soldering termination; Rated current: 1A; Contacts: 14. This SEK Standard connector, boasting a sleek Gray hue, is a must-have in any electronic setup. Constructed with durable Plastic housing and featuring 14 contacts arranged in 2 rows, it ensures reliable connectivity. The solder termination method with Copper Alloy contacts plated with Tin Over Nickel and Noble Metal Over Nickel guarantees optimal performance. With a wide operating temperature range of -55 to 125 °C, a pitch of 2.54 mm, and an IP20 rating, it's suitable for various environments. Its right-angle mount and 4.5 mm tail length offer flexibility in installation. UL 94V-0 flammability rating, 1 A current and 1 kV voltage ratings make it a safe and efficient choice for PCB applications. Elevate your connectivity game with this high-quality SEK connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
