| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185146913 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 14 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185146913 |
09185146913
Specifications
Detailed Description

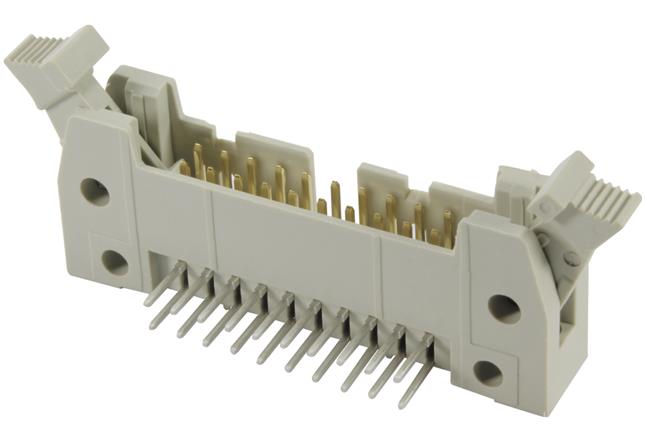

SEK Standard Male Connector is a reliable and efficient solution for PCB to cable connections. Made of durable thermoplastic resin (PBT) in a sleek beige finish, this connector ensures secure and stable performance. With a wave soldering termination method, installation is quick and hassle-free. Featuring 14 contacts and a contact plating of Tin Over Nickel and Noble Metal Over Nickel, it guarantees excellent conductivity and corrosion resistance. Operating temperature ranging from -55°C to 125°C, and a current rating of 1A make it suitable for a wide range of applications. Meeting IP20 standards for ingress protection and UL 94V-0 flammability rating, it prioritizes safety and reliability. Perfect for use in various electronic devices, the SEK Standard Male Connector is a must-have component for any PCB assembly project.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
