| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185146921 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 14 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 4.5 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185146921 |
09185146921
Specifications
Detailed Description

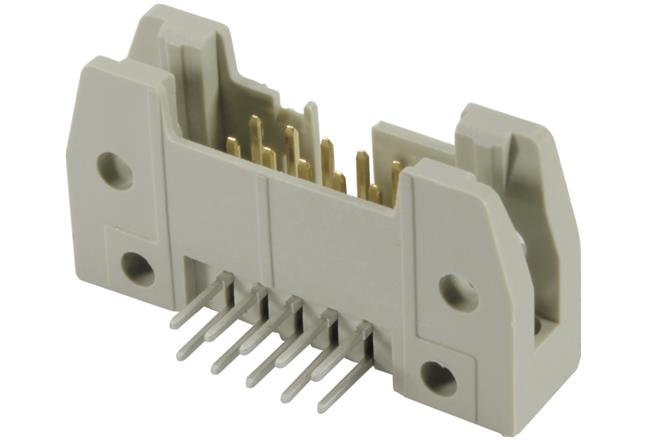

SEK Standard Male Connector is a reliable and efficient solution for PCB to cable connections. Constructed with durable thermoplastic resin (PBT) in a sleek beige color, this connector ensures secure and stable performance. With a wave soldering termination method, installation is quick and hassle-free. Rated for a current of 1A and featuring 14 contacts, it guarantees optimal conductivity. The connector is designed for high temperature environments, with a maximum operating temperature of 125°C and a minimum of -55°C. Its IP20 rating provides protection against dust and moisture, making it suitable for a variety of industrial applications. The right-angle mount angle and 2.54mm pitch offer flexibility in installation, while the UL 94V-0 flammability rating ensures safety compliance. Trust in the SEK Standard Male Connector for dependable and long-lasting connectivity.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
