| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185147323 |
| Color: | Gray |
| Pitch: | 2.54 mm |
| Gender: | Male |
| Series: | SEK Low-profile |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 50 cycle |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Plastic |
| Number of Contacts: | 14 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09185147323 |
09185147323
Specifications
Detailed Description

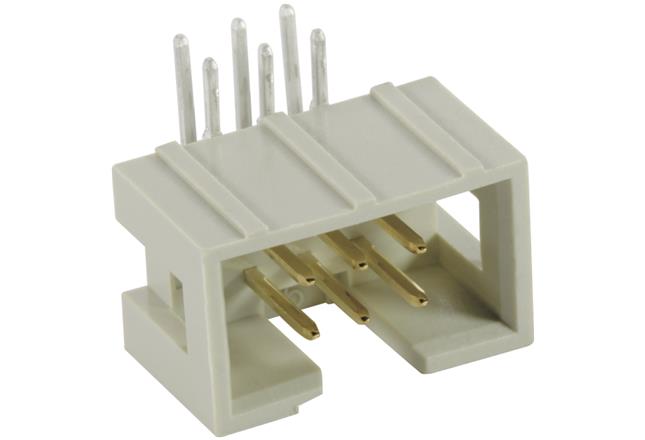

The SEK Low-profile Connector ( 09185147323) is a versatile male connector designed for PCB to cable connections. With a durable thermoplastic resin (PBT) housing in a sleek beige color, this connector offers reliable performance in a range of applications. Featuring 14 contacts in 2 rows with a 2.54mm pitch, it allows for efficient signal transmission. The wave soldering termination method ensures easy installation, while the copper alloy contacts with tin over nickel plating guarantee excellent conductivity. With a rated current of 1A and a voltage rating of 1kV, this connector is suitable for low-power applications. Meeting IP20 standards for ingress protection and UL 94V-0 flammability rating, it ensures safety and durability. Whether used in industrial machinery, telecommunications, or consumer electronics, the SEK Connector delivers high-quality connectivity.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
